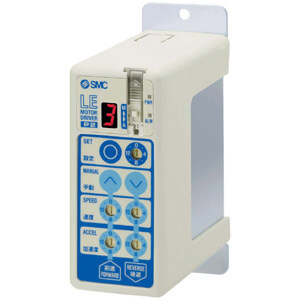

LECP2, Programless Controller w/Stroke Study for LEM
The LECP2 is a programless controller exclusively available for the LEM series. 12 intermediate positions along with the 2 stroke end points can be set directly from the control panel. When LEM stroke adjust units are used, the controller’s stroke study registers end positions with one button. A reduced wiring option allows fewer inputs if 3 or less positions are required. This model excludes the pushing operation available on the LECP1.
- Same features and performance as LECP1, except:
- Positions: 12 intermediate and 2 stroke end points
- Stroke study: After setting stroke adjust units, register both end positions with 1 button
How to order
How to Order
C 2LE N 1P
Controller
Number of step data (Points)
2
2 stroke end points/
12 intermediate points (Programless)
LEMB25T-300
Programless Controller
(With Stroke Study)
®
RoHS
Specialized for Series LEM
Compatible motor
P
Step motor (Servo/24 VDC)
Parallel I/O type
N
P
NPN
PNP
Actuator part number
(Except cable specifications and actuator options)
Example: Enter “LEMB25T-300” for the
LEMB25T-300W-S12N1.
Specifications
Basic Specifications
Item
LECP2
Compatible motor
Power supply
Note 1)
Parallel input
Parallel output
Stop points
Compatible encoder
Memory
LED indicator
7-segment LED display
Note 3)
Lock control
Cable length [m]
Cooling system
Operating temperature range [°C]
Operating humidity range [%RH]
Storage temperature range [°C]
Storage humidity range [%RH]
Insulation resistance [MΩ]
Weight [g]
Step motor (Servo/24 VDC)
6 inputs (Photo-coupler isolation)
6 outputs (Photo-coupler isolation)
Stroke ends 2 points (Position number 1 and 2), Intermediate position 12 points (Position number 3 to 14(E))
Incremental A/B phase (800 pulse/rotation)
EEPROM
LED (Green/Red) one of each
1 digit, 7-segment display (Red) Figures are expressed in hexadecimal. (“10” to “15” in decimal number are expressed as “A” to “F”)
Forced-lock release terminal
Note 4)
I/O cable: 5 or less, Actuator cable: 20 or less
Natural air cooling
0 to 40 (No freezing)
90 or less (No condensation)
−10 to 60 (No freezing)
90 or less (No condensation)
Between the housing and SG terminal: 50 (500 VDC)
130 (Screw mounting), 150 (DIN rail mounting)
Power supply voltage: 24 VDC ±10%, Max. current consumption: 3 A (Peak 5 A)
Note 2)
[Including the motor drive power, control power supply, stop, lock release]
Note 4) Applicable to non-magnetizing lock
Decimal display
Hexadecimal display
10
A
11
b
12
c
13
d
14
E
15
F
Note 1) Do not use the power supply of “inrush current prevention type” for the controller input power supply. When conformity to UL is required, the electric
actuator and controller should be used with a UL1310 Class 2 power supply.
Note 2) The power consumption changes depending on the actuator model. Refer to the each actuator’s operation manual etc. for details.
Note 3) “10” to “15” in decimal number are displayed as follows in the 7-segment LED.
Option
Nil
D
Note)
Screw mounting
DIN rail mounting
Note) DIN rail is not included.
Order it separately.
I/O cable length [m]
Nil
1
3
5
Without cable
1.5
3
5
Series LECP2
The controller is sold as single
unit after the compatible
actuator is set.
Confirm that the combination of the
controller and the actuator is correct.
∗ Refer to the operation manual for using the
products. Please download it via our website,
http://www.smcworld.com
[CE-compliant products]
EMC compliance was tested by combining the electric actuator LEM series and the controller LEC series.
The EMC depends on the configuration of the customer’s control panel and the relationship with other
electrical equipment and wiring. Therefore, conformity to the EMC directive cannot be certified for SMC
components incorporated into the customer’s equipment under actual operating conditions. As a result, it is
necessary for the customer to verify conformity to the EMC directive for the machinery and equipment as a
whole.
[UL-compliant products]
When conformity to UL is required, the electric actuator and controller should be used with a UL1310 Class 2
power supply.
Caution
47
