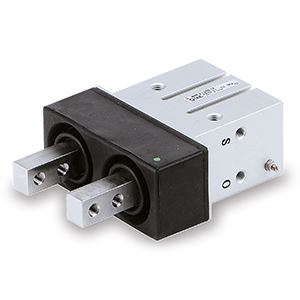

MHK, Air Gripper, Wedge Cam Operated Slide Guide

  • MHK, Air Gripper, Wedge Cam Operated Slide Guide

The series MHK2 grippers utilize a wedge cam design to minimize their overall size, allow no lateral vibration along stroke direction once the workpiece is held, while retaining a high holding force. Available in single acting (N.C., N.O.) and double acting as well as with a long stroke option.

  • Bore sizes: 12, 16, 20, 25 mm
  • Built-in adjustment needle for finger speed
  • Dust covers: chloroprene rubber, fluororubber, silicone rubber
  • High repeatability: ±0.01 mm
  • Auto switch capable
  • Option for NSF-H1, food grade lubricant
Catalog Series Catalog
Cutsheet How to Order
Cutsheet How to Order
Online or Call Click Here to Order
Catalog Series Catalog
Configuration Options


Click Here to Order
Compliance: ______
Copy Configuration Number

Product Options

Select Product Options
Select values from the drop down lists or make appropriate selections to configure the part number.
Finger Stroke Configuration Status
Bore Size Configuration Status
Action Configuration Status
Finger Material Configuration Status
Dust Cover Configuration Status
Auto Switch Configuration Status
Lead Wire or Prewired Connector Configuration Status
Number Configuration Status
Options in:
  • Gray are not compatible with other selected option value.
  • Red conflict with another selected option value.
  • Amber are not recommended.
